Features
Performance in its precious form

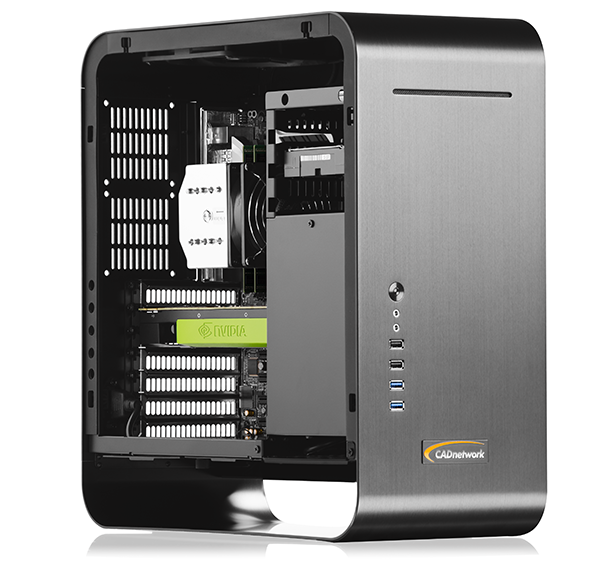

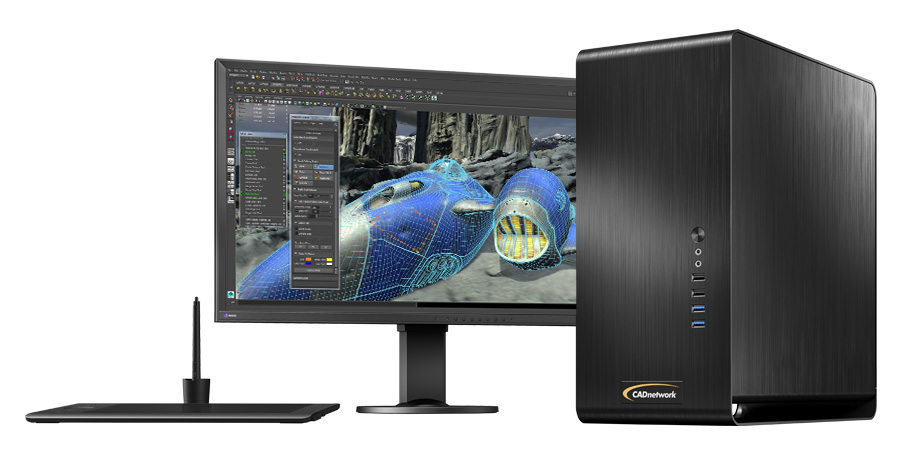

The CADnetwork Creator! combines outstanding performance and a masterpiece in design and build quality. Premium materials and high quality workmanship provide the basis for this workstation.
Ergonomics and Innovation
The Creator! creates workplace-friendly environments by a frightening silence and eliminates unreliable hardware and inconvenient operation.
The workstation adapts perfectly to your needs and can be easily expanded and upgraded.
4x HDD/SSD
& NVMe SSD
|
Intel Core i7 / Xeon
Processor
|
up to 2x GPUs
|
up to 256GB ECC
Memory
|
Technical Data
- Processor
- GPU Support
- Memory
- Storage
- Chipset
- Network
- Connector front
- Connector back
- Expansion slots
- Power supply
- Operating systems
- Dimensions
Creator!
-
Intel Core 10th Gen Family up to 10 Cores
-
2x NVIDIA Quadro/
GeForce graphic card
-
128GB DDR4 2933 MHz ECC
4 Slots
-
4x SSD / HDD SATA 6GB/s
2x NVMe PCIe SSD
-
Intel Z490
-
1x 2.5 Gigabit LAN
Wireless optional
-
2x USB 3.1 Gen1
2x USB 2.0
Audio In/Out
-
4x USB 3.2 Gen2, 2x USB 3.2 Gen1
2x USB 2.0
je 1x HDMI,DVI,DP
1x LAN, 1x S/PDIF Audio optical
5x Audio
-
3x PCIe 3.0 x16, 3x PCIe 3.0 x1
-
550W/750W power supply 80+ Gold
100/240V, 50/60Hz
-
Windows 10
Linux
-
200 x 445 x 421 mm WHD
Creator! Extreme
-
Intel Core i7-X Series (up to 8-Cores)
Intel Core i9-X Series (up to 12-Cores)
Intel Xeon E5 (up to 18-Cores)
-
2x NVIDIA Quadro/
GeForce graphic card
-
128GB DDR4 2400 MHz ECC Reg.
8 slots
-
4x SSD / HDD SATA 6GB/s
2x NVMe PCIe SSD
-
Intel X299
-
Gigabit LAN
Wireless optional
-
2x USB 3.0
2x USB 2.0
Audio In/Out
-
4x USB 3.1 Gen 1, 2x USB 3.1 Gen 2
(1x Type-C), 2x USB 2.0
1x LAN, 1x S/PDIF Audio optical
5x Audio
-
3 x PCIe 3.0 x16
2 x PCIe 3.0 x4, 1x PCIe 3.0 x1
-
750W power supply 80+ Gold
100/240V, 50/60Hz
-
Windows 10
Linux
-
200 x 445 x 421 mm WHD
Creator! AMD Ryzen Edition
-
AMD Ryzen Family
up to 16 Cores
-
up to 2x NVIDIA GPUs
GeForce / Quadro
-
up to 128GB DDR4 3200 MHz
4 Slots
-
8x SATA 6.0 GB/s
RAID 0,1,5,10
HW-RAID optional
2x NVMe PCIe SSD
-
AMD X570
-
1x Intel Gigabit Network
10Gigabit Network optional
-
2x USB 3.1 Gen1
2x USB 2.0
Audio In/Out
-
4x USB 3.2 Gen 1, 4x USB 3.2 Gen 2
1x PS/2, 1x HDMI, 1x DP
1x LAN, 1x S/PDIF Audio optical
5x Audio
-
3 x PCIe 4.0 x16
3 x PCIe 4.0 x1
-
750W power supply 80+ Gold
100/240V, 50/60Hz
-
Windows 10 Pro
Linux
-
200 x 445 x 421 mm WHD
Buy
Our Fix-Configurations:
Workstation Creator! variant 1
Intel Core i7-9700
8-Core (3.00-4.70 GHz)
16GB DDR4 2666 MHz RAM
NVIDIA Geforce RTX 2060 Super
250GB SSD SATA 6Gb/s
Microsoft Windows 10 Pro
*SPECIAL PRICE
€ 1,980.00
€ 2,356.20 incl. 19% MwSt.
Add to cart
Workstation Creator! variant 2
Intel Core i9-9900K
8-Core (3.70-4.70 GHz)
32GB DDR4 2666 MHz RAM
NVIDIA GeForce RTX 2080 Ti
256GB SSD NVMe M.2
Microsoft Windows 10 Pro
*SPECIAL PRICE
€ 3,290.00
€ 3,915.10 incl. 19% MwSt.
Add to cart
Workstation Creator! Extreme 10-Core
Intel Core i9-10900X
10-Core (3.70-4.50 GHz)
64GB DDR4 2933MHz RAM
NVIDIA GeForce RTX 2080 Ti
512GB SSD NVMe M.2
Microsoft Windows 10 Pro
*SPECIAL PRICE
€ 4,590.00
€ 5,462.10 incl. 19% MwSt.
Add to cart
Workstation Creator! Extreme 14-Core
Intel Core i9-10940X
14-Core (3.30-4.60 GHz)
128GB DDR4 2933MHz RAM
NVIDIA GeForce RTX 2080 Ti
1TB SSD NVMe M.2
Microsoft Windows 10 Pro
*SPECIAL PRICE
€ 5,980.00
€ 7,116.20 incl. 19% MwSt.
Add to cart
